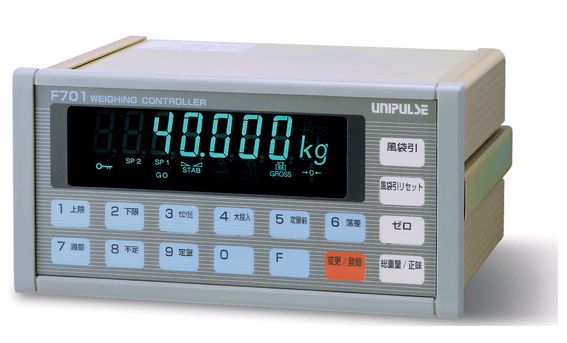

F701 称重控制仪表
主贴
发帖人:unipulse88
邮箱:800@unipulse.net
注册时间:2009/1/3 10:40:59
2009/1/3 10:49:34邮箱:800@unipulse.net
注册时间:2009/1/3 10:40:59
· 高速A/D转换速率，每秒100次高速数字处理能力。
· 三级给料控制，预置设定值准确喂料卸料控制。
· 方便各种自动序列称重调用的程序。
· 各种选购件均可使用。
F701 is suitable for Hopper scale, Packing scale, Check-weighing and Batching systems. Full digital front
panel calibration, High speed A/D Conversion rate and powerful digital processing capabilities of 100
times/sec. allow top speed and accuracy for your applications.
Self-Check function and Watch-Dog in CPU, ROM and internal circuit ensure excellent reliability. Typical
set-point processing includes three-gate feed and discharge gate controls (Feed/ Discharge control function).
Automatic free fall compensation constantly updates the free fall ＆#118alue for greater filling accuracy.
Numeric keyboard for Tare and Set-point entry, Key entry protection. Two(2) Zero, Span adjustment ranges,
two(2) types of gain can be selected according to the output of load cell.
Unipulse standard 2-wire serial interface SI/F for connecting Unipulse printer and remote displays. Printer
could print daily, monthly report with each necessary items, remote displays could display Gross, Net, Tare
weight and Accumulated ＆#118alue. Option BCD output, RS-232C communication interface, RS-485
communication interface, D/A Converter and Set-point interface.
panel calibration, High speed A/D Conversion rate and powerful digital processing capabilities of 100
times/sec. allow top speed and accuracy for your applications.
Self-Check function and Watch-Dog in CPU, ROM and internal circuit ensure excellent reliability. Typical
set-point processing includes three-gate feed and discharge gate controls (Feed/ Discharge control function).
Automatic free fall compensation constantly updates the free fall ＆#118alue for greater filling accuracy.
Numeric keyboard for Tare and Set-point entry, Key entry protection. Two(2) Zero, Span adjustment ranges,
two(2) types of gain can be selected according to the output of load cell.
Unipulse standard 2-wire serial interface SI/F for connecting Unipulse printer and remote displays. Printer
could print daily, monthly report with each necessary items, remote displays could display Gross, Net, Tare
weight and Accumulated ＆#118alue. Option BCD output, RS-232C communication interface, RS-485
communication interface, D/A Converter and Set-point interface.
