F770 内置打印机称重计数显示仪表
主贴
发帖人:unipulse88
邮箱:800@unipulse.net
注册时间:2009/1/3 10:40:59
2009/1/3 10:52:50邮箱:800@unipulse.net
注册时间:2009/1/3 10:40:59
- 面盘可随意改变设定值。
- 每个检重值的平均值保持功能。
- 统计值和总计值可打印输出。
- 每个计数值可由计数功能显示。
- 称重量程宽。

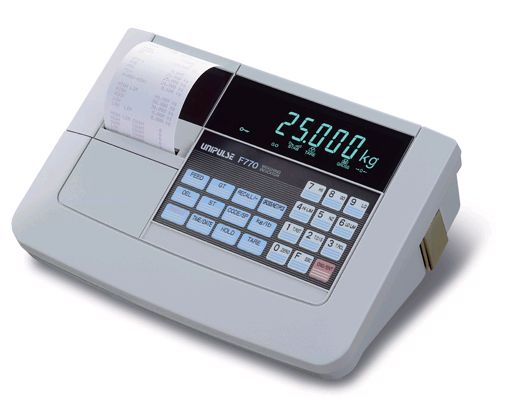

F770 is a versatile instrument capable of static weighing, counting and check weighing. Its design
is convenient for desktop, panel mount and tower placement.
F770 is also a powerful industrial tool featuring: 100 preset tables with table number, unit weight memory
with other 7 items, counting console, auto dual interval as well as check-weighing function. A large weight
display with 17 status displays and extensive keypad keep operation easy and convenient. 12 keys for input
of numeric and set-point functions along with 5 dedicated function keys and 7 printer keys make setup a
snap.
High speed A/D conversion (50times per second) and HI-LIM/ HI/ GO/ LO/ LO-LIM comparative outputs
make the F770 your choice for a variety of check-weighing and sorting applications. Features include: Multi
Hold function: Random sampling hold, Stable ＆#118alue hold, Average ＆#118alue hold with specific section. A couple
of strokes of the key pad is all you need to input a sample amount or a unit weight when using the F770 as a
counting console.
Unipulse standard 2-wire serial interface SI/F is for connecting remote displays. Optical bi-directional
RS-232C interface to a computer. Built-in printer gives sub-total, Grand total. Batch total, Statistical data:
Average weight, Max. weight, Min. weight, Max-Min, General standard deviation, Sample standard
deviation and Count of data (n) for each code number.
is convenient for desktop, panel mount and tower placement.
F770 is also a powerful industrial tool featuring: 100 preset tables with table number, unit weight memory
with other 7 items, counting console, auto dual interval as well as check-weighing function. A large weight
display with 17 status displays and extensive keypad keep operation easy and convenient. 12 keys for input
of numeric and set-point functions along with 5 dedicated function keys and 7 printer keys make setup a
snap.
High speed A/D conversion (50times per second) and HI-LIM/ HI/ GO/ LO/ LO-LIM comparative outputs
make the F770 your choice for a variety of check-weighing and sorting applications. Features include: Multi
Hold function: Random sampling hold, Stable ＆#118alue hold, Average ＆#118alue hold with specific section. A couple
of strokes of the key pad is all you need to input a sample amount or a unit weight when using the F770 as a
counting console.
Unipulse standard 2-wire serial interface SI/F is for connecting remote displays. Optical bi-directional
RS-232C interface to a computer. Built-in printer gives sub-total, Grand total. Batch total, Statistical data:
Average weight, Max. weight, Min. weight, Max-Min, General standard deviation, Sample standard
deviation and Count of data (n) for each code number.
Features
l Employs a large high-intensity Fluorescent display that gives clear weight indication even in harsh
environments
l Sample (count) or unit weight display
l Recalling Preset Table changes weighing parameter.
l Full digital front panel calibration
l Auto-print when stable function
l Employs a large high-intensity Fluorescent display that gives clear weight indication even in harsh
environments
l Sample (count) or unit weight display
l Recalling Preset Table changes weighing parameter.
l Full digital front panel calibration
l Auto-print when stable function
青岛汉威称重测力系统有限公司
UNIPULSE（尤尼帕斯）中国授权区域代理
电话：0532-83878507；传真：0532-83867072；
联系人：顾晓奎;电子邮件：sales@unipulse.net
商务联系马玲玲，800@unipulse.net，
技术支持顾晓奎unipulse@163.com，电话13808957418
商务联系马玲玲，800@unipulse.net，
技术支持顾晓奎unipulse@163.com，电话13808957418。
青岛汉威地址是：山东青岛市香港中路5号
联系人：顾晓奎;电子邮件：sales@unipulse.net
商务联系马玲玲，800@unipulse.net，
技术支持顾晓奎unipulse@163.com，电话13808957418
商务联系马玲玲，800@unipulse.net，
技术支持顾晓奎unipulse@163.com，电话13808957418。
青岛汉威地址是：山东青岛市香港中路5号
