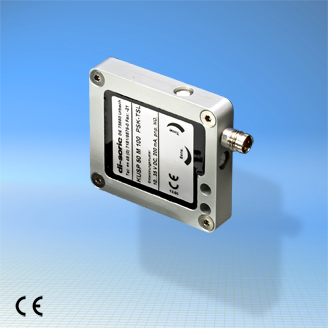

Contact and vibration sensor KUS 50 M 100 PSK-TSL

http://www.intl-sensor.com Time:2008/12/9 17:11:21 Count : 3887 times

Technical Details (typ.):	+20°C, 24V DC
Baffle plate	without
Service voltage	10 ... 35 V DC
Output	pnp, 200 mA, NO
Sensitivity	steelball Ø 3 mm from 20 mm height
Internal power consumption	< 15 mA
Pulse stretching	1 ... 30 ms adjustable
Operating frequency	100 Hz
Ambient temperature	-25 ... +70 °C
Protection class	IP 67
Casing material	aluminium, anodized
Baffle plate material	heat treatable steel

Keywords:

Detection through direct contact during ejection or free fall
For screws, studs, punched parts, springs and non-metallic parts
Adjustable suppression of multiple impulses
Up to 100 parts per second
Long life due to interchangeable baffle plate

Proper function even under most extreme conditions
