Honsberg piston valve design
principle control
electr. data reed switch n.o. or n.c.
230 V AC 1A 50 VA
basic data PN 200 , tmax=110°C
connection G1/4 - G1 1/2 female thread bronze
range 0.4-90 l/min H2O
principle control
electr. data reed switch n.o. or n.c.
230 V AC 1A 50 VA
basic data PN 200 , tmax=110°C
connection G1/4 - G1 1/2 female thread bronze
range 0.4-90 l/min H2O

Honsberg FW1
principle control
electr. data reed switch n.o.
230 V AC 0.5A 50 VA
basic data PN 10-100 , tmax=90°C
connection G1/4 - G1 female thread plastic / brass
range 1-11 l/min H2O
principle control
electr. data reed switch n.o.
230 V AC 0.5A 50 VA
basic data PN 10-100 , tmax=90°C
connection G1/4 - G1 female thread plastic / brass
range 1-11 l/min H2O

Honsberg FW3
principle control
electr. data reed switch n.o.
230 V AC 0.5A 50 VA
basic data PN 100 , tmax=90°C
connection G1/4 female thread brass
range 0.4-2.5 l/min H2O
principle control
electr. data reed switch n.o.
230 V AC 0.5A 50 VA
basic data PN 100 , tmax=90°C
connection G1/4 female thread brass
range 0.4-2.5 l/min H2O

Honsberg HD1K
principle control • option indicate
electr. data reed switch change over
250 V AC 1.5A 50 VA
basic data PN 200 , tmax=120°C
connection G1/4 - G1 female thread brass / stainless steel
range 0.5-60 l/min H2O
switch head ATEX switch head ATEX
I M1 EEx ia I
II 1G EEx ia IIC T4
II 1D EEx iaD 20 T135
also as omni-HD1K local electronic unit
2xNPN and PNP switch point
4(0)...20mA ouput
graphical LCD display with flashing LED
program ring
principle control • option indicate
electr. data reed switch change over
250 V AC 1.5A 50 VA
basic data PN 200 , tmax=120°C
connection G1/4 - G1 female thread brass / stainless steel
range 0.5-60 l/min H2O
switch head ATEX switch head ATEX
I M1 EEx ia I
II 1G EEx ia IIC T4
II 1D EEx iaD 20 T135
also as omni-HD1K local electronic unit
2xNPN and PNP switch point
4(0)...20mA ouput
graphical LCD display with flashing LED
program ring

Honsberg GKL
principle local measure • option control
basic data PN 15 , tmax=60°C
connection Rp1 - Rp2 female thread cast iron
range 100-6400 l/h H2O
1.25-250 Nm³/h air
principle local measure • option control
basic data PN 15 , tmax=60°C
connection Rp1 - Rp2 female thread cast iron
range 100-6400 l/h H2O
1.25-250 Nm³/h air

Honsberg GR-065
principle local measure
basic data PN 10 , tmax=90°C
connection NPT1/8" female thread stainless steel
range 0.2-1305 cm³/min H2O
2-43340 Ncm³/min air
principle local measure
basic data PN 10 , tmax=90°C
connection NPT1/8" female thread stainless steel
range 0.2-1305 cm³/min H2O
2-43340 Ncm³/min air

Honsberg UK-040
principle local measure • adjust
basic data PN 6 , tmax=65°C
connection NPT1/8" female thread brass / stainless steel
range 6-220 l/h H2O
0.1-100 Nl/min air
principle local measure • adjust
basic data PN 6 , tmax=65°C
connection NPT1/8" female thread brass / stainless steel
range 6-220 l/h H2O
0.1-100 Nl/min air

Honsberg UR3K
principle control
electr. data reed switch n.o.
230 V AC 1A 50 VA
basic data PN 16-25 , tmax=110°C
connection
range G3/8 - G2 female thread brass / stainless steel
3-69 l/min H2O
connection
range DN15-80 welding/soldering socket brass/stainless steel
8.5-248 l/min H2O
connection
range DN10-40 solder fitting copper (special application)
4.5-46 l/min H2O
principle control
electr. data reed switch n.o.
230 V AC 1A 50 VA
basic data PN 16-25 , tmax=110°C
connection
range G3/8 - G2 female thread brass / stainless steel
3-69 l/min H2O
connection
range DN15-80 welding/soldering socket brass/stainless steel
8.5-248 l/min H2O
connection
range DN10-40 solder fitting copper (special application)
4.5-46 l/min H2O

Honsberg CM2K
principle control
electr. data micro switch change over
250 V AC 5A
basic data PN 25 , tmax=110°C
connection DN25-200 R1 " male thread socket brass / stainless steel
range 0.5-71 m³/h H2O
principle control
electr. data micro switch change over
250 V AC 5A
basic data PN 25 , tmax=110°C
connection DN25-200 R1 " male thread socket brass / stainless steel
range 0.5-71 m³/h H2O

Honsberg WO1
principle indicate
basic data PN 16 , tmax=100°C
connection G1/4 - G1 1/2 female thread brass / stainless steel
principle indicate
basic data PN 16 , tmax=100°C
connection G1/4 - G1 1/2 female thread brass / stainless steel

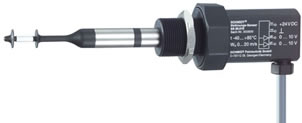

SCHMIDT® Flow Sensor SS 20.015/ SS 20.016
Very compact sensor with integrated electronics for measuring the flow velocity of air and gases and for measuring the temperature of the medium simultaneously. Pressure and temperature independent measurement of the normal flow velocity. No moving parts. Aerodynamic dumb-bell head with optimum flow characteristics. Extensively independent of direction and insensitive to contamination..measuring range 0---20m/s
temperature -40----+85℃
humidity range 0----90%RH
measuring sensitivity non linear

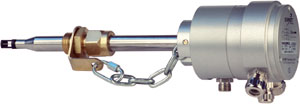

schmidt flow sensor SS 20.650
The sensor is exposed to high temperatures and forces due to the
gas flow,Exact and long-term stable measuring values;Wide flow measuring range;Temperature recording
High precision (optional): ±(1 % of measuring value + 0.4 % of measuring range) Medium: air,nitrogen,Operating temperature: 0 … +200 °C / +350 °C,Operating pressure,pressure-tight high-temperature design: 0 to 16 bar

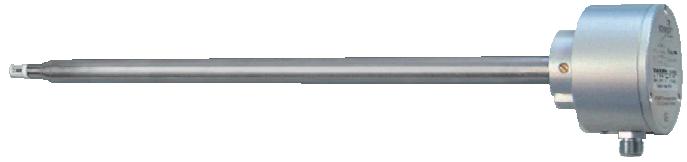

SCHMIDT® Flow Sensors SS20.60
High temperature gradient permissible
Electronic temperature compensation active in the whole range of operating temperatures
Large measuring-range dynamics of 1:800
Easy, cost-saving mounting
Pressure-proofed up to 16 bar
Digital output for connection to supply meter or energy management systems
Optionally with integrated field bus interface

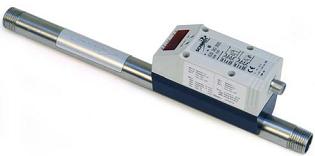

SCHMIDT® Flow Sensor SS 30.300, SS 30.301, SS 30.302 and SS 30.303
Simple installation
Direct measuring of normal volume flow
Small pressure loss
Display of flow rate, total flow and medium temperature

SCHMIDT® Air-Consumption Display Unit 20.031
It displays the air-consumption volume or the actual air-flow rate. The desired display mode may be selected via push button.
