ImageMainDescDownload

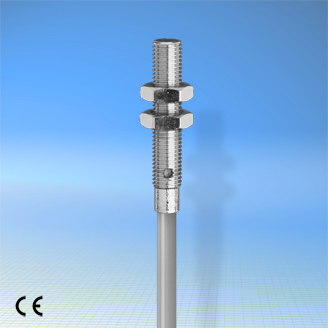

Proxitron IKZ 182.23 GH		Type IKZ 182.23 GH
Art.-No. 2229D
Rated operating distance (Sn) 5 mm
Output PNP n. o.
Target steel St37, 1 mm thick 18 x 18 mm
Location at metal flush mount
Supply voltage (UB) 10 - 30 V DC
Ripple voltage < 10 %
Load current max. 0 - 150 mA
Short circuit protection yes, pulsing
Voltage drop (Ud) 2 V
Operating frequency (f) 400 Hz
Switching hysteresis (H) max. 15 %
Ambient temperature -40 ... +175 °C
Protection class IP 67
Connection 2m silicone cable
Function display no
Housing material stainless steel		Type IKZ 182.23 GH
Art.-No. 2229D
Rated operating distance (Sn) 5 mm
Output PNP n. o.
Target steel St37, 1 mm thick 18 x 18 mm
Location at metal flush mount
Supply voltage (UB) 10 - 30 V DC
Ripple voltage < 10 %
Load current max. 0 - 150 mA
Short circuit protection yes, pulsing
Voltage drop (Ud) 2 V
Operating frequency (f) 400 Hz
Switching hysteresis (H) max. 15 %
Ambient temperature -40 ... +175 °C
Protection class IP 67
Connection 2m silicone cable
Function display no
Housing material stainless steel

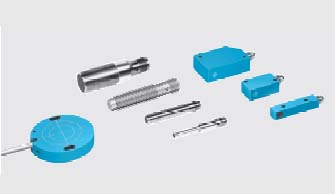

D7C/DC/DCC/KDC series proximity sensor		Detailed information ,please don't hesitate to contact us!Ultra-short inductors and capacitors design principle
Disc-shaped design with analog output
The design of a cube-resistant high-pressure up to 500 bar (about 500KG/cm2)
Plug-type connector
And the standard of close to switch away from work, three times the increase
Design in diameter from 3 to M30
Detection distance from 0.6 to 40mm
IP 67 protection class for more than

Germany di-soric proximity sensor DCC 3.0 V 0.6 PSLK		Ultra-short inductors and capacitors design principle
High-pressure-resistant up to 500 bar (about 500KG/cm2)
Plug-type connector
And the standard of close to switch away from work, three times the increase
Design diameter M3
IP 67 protection class		Detection distance: 0.6mm
Size: 3x3x1mm
Supply voltage :10 - 30VDC
Output: PNP / NPN, 100mA
Frequency: 5000Hz
Temperature range: -25-70 ° C

count3 every page 15 1/1page   first page   prev page   next page   last page
