VTI SCP1000 		30 kPa - 120 kPa measuring range

Single +2.4 … 3.3 V supply

Four built-in measuring modes plus power down mode

Fully calibrated and compensated component


On-chip temperature measurement

Standard digital output: SPI or I2C

Small package size with I-seal gasket option, diameter 6.1 mm, height 1.7 mm

Proof pressure 2.0 MPa

Pb-free solderable component & RoHS-compatible.
30 kPa - 120 kPa measuring range

Single +2.4 … 3.3 V supply

Four built-in measuring modes plus power down mode

Fully calibrated and compensated component


On-chip temperature measurement

Standard digital output: SPI or I2C

Small package size with I-seal gasket option, diameter 6.1 mm, height 1.7 mm

Proof pressure 2.0 MPa

Pb-free solderable component & RoHS-compatible.

PCB 175A01 		Engine combustion pressure sensor, 4000 psi, 1.5 pC/psi, flush mount, 0.244 dia. diaphragm, 3/8-24 floating clamp nut

Measurement Range: 4000 psi (27580 kPa)
Sensitivity: (±15%) 1.35 pC/psi (0.195 pC/kPa)
Temperature Range: (Operating) -100 to +600 °F (-73 to +316 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.48 oz (13.5 gm) 		Engine combustion pressure sensor, 4000 psi, 1.5 pC/psi, flush mount, 0.244 dia. diaphragm, 3/8-24 floating clamp nut

Measurement Range: 4000 psi (27580 kPa)
Sensitivity: (±15%) 1.35 pC/psi (0.195 pC/kPa)
Temperature Range: (Operating) -100 to +600 °F (-73 to +316 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.48 oz (13.5 gm)

PCB 134A		Tourmaline pressure bar, 10k psi, 0.12 pC/psi, charge output, 0.2 µS rise time (reflected shock wave)

Measurement Range: 10000 psi (68950 kPa)
Sensitivity: (±15%) 0.125 pC/psi (0.018 pC/kPa)
Temperature Range: (Operating) -32 to +120 °F (-36 to +49 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.98 oz (28 gm) 		Tourmaline pressure bar, 10k psi, 0.12 pC/psi, charge output, 0.2 µS rise time (reflected shock wave)

Measurement Range: 10000 psi (68950 kPa)
Sensitivity: (±15%) 0.125 pC/psi (0.018 pC/kPa)
Temperature Range: (Operating) -32 to +120 °F (-36 to +49 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.98 oz (28 gm)

PCB 137A 		Quartz, free-field, ICP® blast pressure pencil probe, 5000 psi, 1 mV/psi

Measurement Range: (for ±1V output) 1 kpsi (6895 kPa)
Sensitivity: 1.0 mV/psi (0.145 mV/kPa)
Resonant Frequency: >=500 kHz
Electrical Connector: BNC Jack
Weight: 12.7 oz (360 gm) 		Quartz, free-field, ICP® blast pressure pencil probe, 5000 psi, 1 mV/psi

Measurement Range: (for ±1V output) 1 kpsi (6895 kPa)
Sensitivity: 1.0 mV/psi (0.145 mV/kPa)
Resonant Frequency: >=500 kHz
Electrical Connector: BNC Jack
Weight: 12.7 oz (360 gm)

PCB 138A 		Tourmaline underwater blast sensor, 7.6" length, 25k psi, 0.18 pC/psi

Measurement Range: +25000 psi (+172380 kPa)
Sensitivity: (±20%) 0.18 pC/psi (0.026 pC/kPa)
Temperature Range: (Operating) 0 to 100 °F (-17.8 to 37.5 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: .75 oz (21 gm) 		Tourmaline underwater blast sensor, 7.6" length, 25k psi, 0.18 pC/psi

Measurement Range: +25000 psi (+172380 kPa)
Sensitivity: (±20%) 0.18 pC/psi (0.026 pC/kPa)
Temperature Range: (Operating) 0 to 100 °F (-17.8 to 37.5 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: .75 oz (21 gm)

PCB 165A05 		Ballistics pressure sensor, 60k psi, conical end seal

Measurement Range: 70 kpsi (482600 kPa)
Sensitivity: (±15%) 0.135 pC/psi (.0196 pC/kPa)
Temperature Range: (Operating) -100 to +400 °F (-73 to +204 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.4 oz (11 gm) 		Ballistics pressure sensor, 60k psi, conical end seal

Measurement Range: 70 kpsi (482600 kPa)
Sensitivity: (±15%) 0.135 pC/psi (.0196 pC/kPa)
Temperature Range: (Operating) -100 to +400 °F (-73 to +204 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.4 oz (11 gm)

PCB 112B10 		Engine combustion pressure sensor, 3000 psi, 1 pC/psi, spark plug mount

Measurement Range: 3000 psi (20685 kPa)
Sensitivity: (-10 to +25%) 1.0 pC/psi (0.145 pC/kPa)
Temperature Range: (Operating) -100 to +600 °F (-73 to +316 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: (with clamp nut) 0.2 oz (6.0 gm)		Engine combustion pressure sensor, 3000 psi, 1 pC/psi, spark plug mount

Measurement Range: 3000 psi (20685 kPa)
Sensitivity: (-10 to +25%) 1.0 pC/psi (0.145 pC/kPa)
Temperature Range: (Operating) -100 to +600 °F (-73 to +316 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: (with clamp nut) 0.2 oz (6.0 gm)

PCB 106B		ICP® microphone, 300 mV/psi, resolution 0.0001 psi (+ 91 dB), accel. comp.

Measurement Range: (for ±2.5V output) 8.3 psi (57.2 kPa)
Sensitivity: 300 mV/psi (43.5 mV/kPa)
Low Frequency Response: (-5%) 0.5 Hz
Resonant Frequency: >=60 kHz
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.63 oz (18.0 gm) 		ICP® microphone, 300 mV/psi, resolution 0.0001 psi (+ 91 dB), accel. comp.

Measurement Range: (for ±2.5V output) 8.3 psi (57.2 kPa)
Sensitivity: 300 mV/psi (43.5 mV/kPa)
Low Frequency Response: (-5%) 0.5 Hz
Resonant Frequency: >=60 kHz
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.63 oz (18.0 gm)

PCB 122A 		Rocket motor pressure probe, 3000 psi, 1 pC/psi, Helium bleed, conical end seal, 7/16 thd

Measurement Range: 3000 psi (20685 kPa)
Sensitivity: (±20%) 1.1 pC/psi (0.159 pC/kPa)
Temperature Range: (Operating) -450 to +500 °F (-268 to +260 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 4.2 oz (120 gm) 		Rocket motor pressure probe, 3000 psi, 1 pC/psi, Helium bleed, conical end seal, 7/16 thd

Measurement Range: 3000 psi (20685 kPa)
Sensitivity: (±20%) 1.1 pC/psi (0.159 pC/kPa)
Temperature Range: (Operating) -450 to +500 °F (-268 to +260 °C)
Electrical Connector: 10-32 Coaxial Jack
Weight: 4.2 oz (120 gm)

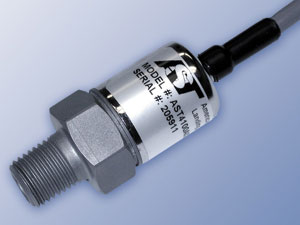

AST4100		Compact Design
Most Configurations under $150
mV, 4-20mA, and Voltage Outputs		Unique Process Connection for Panel Mounting
Compact Design
Most Configurations under $150
mV, 4-20mA, and Voltage Outputs
