ImageMainDescDownload

Proxitron 7802A
Type OKL 203.05 G
Art.-No. 7802A
Response temperature 350 °C / 623 K
View angle 2°
Distance ratio 29:1
Detected surface at 2m ∅ 70 mm
Output normally open
Supply voltage 20 - 260 V AC/DC
Power frequency 40 - 440 Hz
Ripple voltage max. 15 % (DC)
Load current max. 5 - 400 mA
Short-time load current 2 A / 10 ms
0,8 A / 100 ms
Short circuit protection yes, pulsing
Residual current 1,7 mA / 260 V AC
1,0 mA / 24 V DC
Voltage drop 9 V
Operating frequency 1500 Hz (DC)
Ambient temperature -25 ... +60 °C
Protection class IP 67
Connection 2 m PUR-cable
Function display LED
Housing Brass, nickel plated
Accessories
(not included in the scope of supply)
Art.-No.
Tube with air connection OL 25 L 9828G
Type OKL 203.05 G
Art.-No. 7802A
Response temperature 350 °C / 623 K
View angle 2°
Distance ratio 29:1
Detected surface at 2m ∅ 70 mm
Output normally open
Supply voltage 20 - 260 V AC/DC
Power frequency 40 - 440 Hz
Ripple voltage max. 15 % (DC)
Load current max. 5 - 400 mA
Short-time load current 2 A / 10 ms
0,8 A / 100 ms
Short circuit protection yes, pulsing
Residual current 1,7 mA / 260 V AC
1,0 mA / 24 V DC
Voltage drop 9 V
Operating frequency 1500 Hz (DC)
Ambient temperature -25 ... +60 °C
Protection class IP 67
Connection 2 m PUR-cable
Function display LED
Housing Brass, nickel plated
Accessories
(not included in the scope of supply)
Art.-No.
Tube with air connection OL 25 L 9828G

Proxitron 6131B
Type OSB 6747.13 G
Art.-No. 6134A
Type LLK 2
Art.-No. 6436F
Type OAC 204
Art.-No. 6036A
Response temperature adjustable 400 – 700 °C
View angel 2°
Distance ratio 29:1
Detected surface at 2m Ø 70 mm
Output PNP - n. o.
Supply voltage 10 - 55 V DC
Ripple voltage max. 15 %
Load current max. 0 - 400 mA
Short-time load current 2 A / 10 ms
0,8 A / 100 ms
Short circuit protection yes, pulsing
No load current 3 mA
Voltage drop 2 V
Operating frequency 1500 Hz
Switching hysteresis 3 - 10 %
Ambient temperature OSB
(without cooling) LLK+OAC
-20 ... +75 °C
-20 ... +290 °C
Protection class IP 67
Connection 2 m POKT-Therm
cable with G 3/4" flexible
tube connection
Function display LED
Housing material stainless steel
Type OSB 6747.13 G
Art.-No. 6134A
Type LLK 2
Art.-No. 6436F
Type OAC 204
Art.-No. 6036A
Response temperature adjustable 400 – 700 °C
View angel 2°
Distance ratio 29:1
Detected surface at 2m Ø 70 mm
Output PNP - n. o.
Supply voltage 10 - 55 V DC
Ripple voltage max. 15 %
Load current max. 0 - 400 mA
Short-time load current 2 A / 10 ms
0,8 A / 100 ms
Short circuit protection yes, pulsing
No load current 3 mA
Voltage drop 2 V
Operating frequency 1500 Hz
Switching hysteresis 3 - 10 %
Ambient temperature OSB
(without cooling) LLK+OAC
-20 ... +75 °C
-20 ... +290 °C
Protection class IP 67
Connection 2 m POKT-Therm
cable with G 3/4" flexible
tube connection
Function display LED
Housing material stainless steel

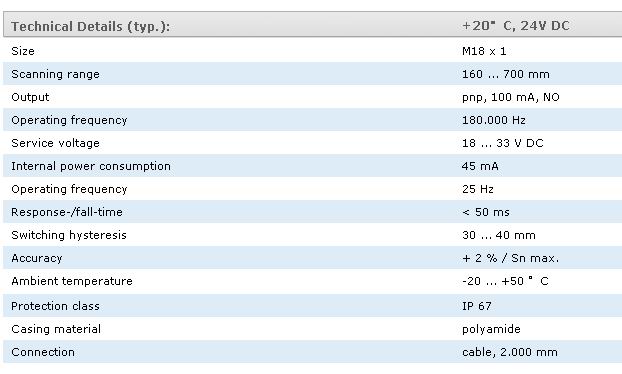

Ultrasonic sensor US 18 K 700 PSLK
Robust casing
Scanning range adjustable
Insensitive to dirt
Insensitive to ambient noise
Scanning does not depend on surface
High follow-up speed
High resolution
Piezo-ceramic composite transducer


Solid shell
High-resolution
Plug-in terminal block synchronization input
A cylindrical design of a square and return to high speed
Working distance of up to 5 m
Analog / digital output
Is not sensitive to dust on the piezoelectric ceramic synthesis converter
Environmental noise does not affect it
IP 65 level protection
Measurement of the surface have not affect

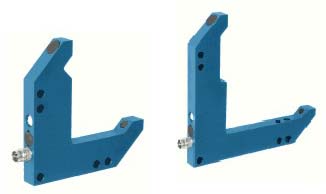

Angled light barrier OGL 050 N3K-TSSL
Metal casing
All-purpose mounting
Optical axis approachable in x-,y- and z-direction
Integrated electronic module
Sensitivity adjustable

High operating frequency

Light/dark switching

Bright ring LED

3-years function guarantee*
*according to our General Conditions of Export

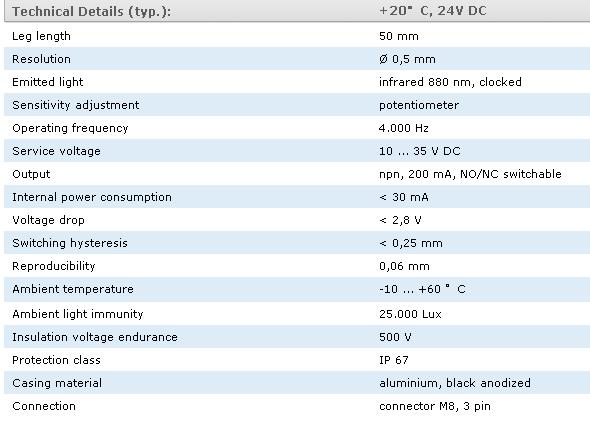

Leg length:50mm
Resolution:Ø 0,5 mm
Emitted light :infrared 880 nm, clocked
Sensitivity adjustment : potentiometer
Operating frequency :4.000 Hz
Service voltage : 10 ... 35 V DC
Output : npn, 200 mA, NO/NC switchable
Internal power consumption : < 30 mA
Voltage drop :< 2,8 V
Switching hysteresis : < 0,25 mm
Reproducibility : 0,06 mm
Ambient temperature : -10 ... +60 °C
Ambient light immunity :25.000 Lux
Insulation voltage endurance : 500 V
Protection class :IP 67
Casing material : aluminium, black anodized
Connection connector :M8, 3 pin

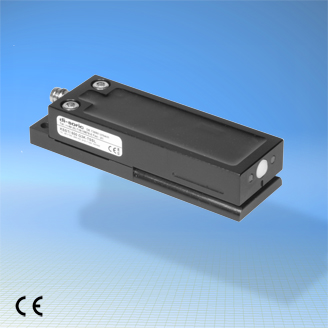

Capacitive label sensor KSSTI 400 G3K-TSSL
Detection of transparent sheets, double layers, splicing points, tears, etc.
Sensitivity adjustment via teach key
Auto-teach during a running process
Temperature and air humidity compensation
Static operating principle

Separable housing


Technical Details (typ.): +20°C, 24V DC
Sensitivity adjustment : teach button
Slot width : 0,4 mm
Label thickness : < 0,3 mm
Label length : > 2 mm
Label interspace : > 2 mm
Tape speed : < 500 m/min
Service voltage :10 ... 35 V DC
Output : pnp/npn, 200 mA, NO/NC switchable
Internal power consumption : < 70 mA
Voltage drop :< 2,5 V
Recovery time :< 150 ms
Switching hysteresis : material dependent
Reproducibility :< 0,01 mm
Ambient temperature :0 ... +60 °C
Insulation voltage endurance : 500 V
Protection class :IP 65
Casing material :aluminium, black anodized
Connection :connector M8, 3 pin

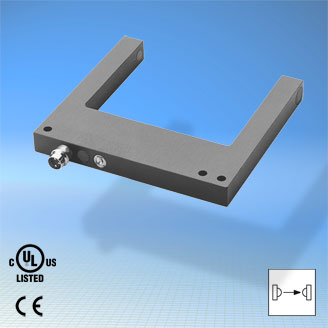

Fork light barrier OGU 070 N3K-TSSL
Metal casing
Integrated electronic module
Sensitivity adjustable
High operating frequency
Light / dark switching

Bright ring LED

High protection class

3-years function guarantee*
*according to our General Conditions of Export



Technical Details (typ.): +20°C, 24V DC
Evaluation :digital
Fork opening :70 mm
Resolution : Ø 0,5 mm
Emitted light : infrared, clocked
Sensitivity adjustment : potentiometer
Operating frequency :4.000 Hz
Service voltage : 10 ... 35 V DC
Output : npn, 200 mA, NO/NC switchable
Internal power consumption :< 30 mA
Voltage drop :< 2,8 V
Switching hysteresis :< 0,25 mm
Reproducibility :0,06 mm
Ambient temperature :-10 ... +60 °C
Ambient light immunity : 25.000 Lux
Insulation voltage endurance : 500 V
Protection class :IP 67
Casing material : aluminium, black anodized
Connection connector :M8, 3 pin

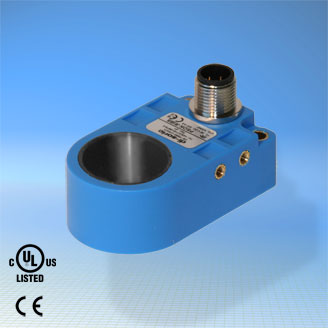

Inductive ring sensor IR 25 NSOK-RIBS
Radial plug connection
High resolution
Short response time
Sensitivity and pulse stretching adjustable
Insensitivity to dirt

Static operating principle

Metal connector

High protection class
Technical Details (typ.): +20°C, 24V DC
Ring-diameter : 25,1 mm
Resolution :Ø 3 mm
Service voltage :10 ... 35 V DC
Output : npn, 200 mA, NO/NC switchable
Operating principle : static
Maximum rating :200 mA
Internal power consumption :< 11 mA
Voltage drop : < 2,0 V
Pulse stretching : 10 ... 150 ms adjustable
Speed of parts :< 35 m/s
Mounting distance to metal :> 5 mm
Response-/ fall-time : < 0,5 ms / < 10 ms
Ambient temperature : -25 ... +70 °C
Insulation voltage endurance :1.000 V
Protection class :IP 67
Casing material :polyamid, ring POM

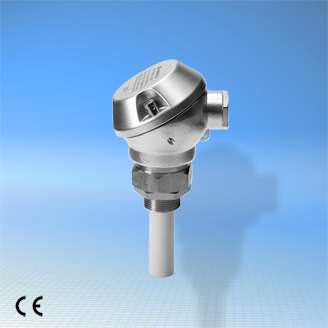

Capacitive level probe KFS 18 T 35 POLK-KL
Probe rod made of tefl on
Conductive and non-conductive materials
Viscous fl uids
High temperature range
High protection class
Technical Details (typ.): +20°C, 24V DC
Thread :M18 x 1
Output : pnp, NC
Service voltage :10 ... 35 V DC
Maximum rating :100 mA
Internal power consumption : < 10 mA
Voltage drop :2,0 V
Operating frequency : 5 Hz
Switching hysteresis : material dependent
Ambient temperature :-30 ... +125 °C (LED to +100 °C)
Insulation voltage endurance :500 V
Protection class : IP 67 connection compartment, IP 68 probe
Connection :clamps

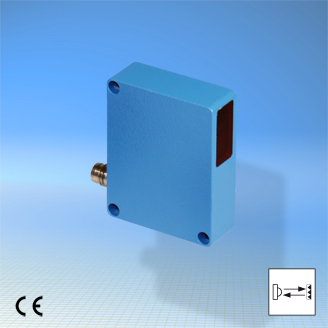

Retro reflective sensor ORV 51 M 2000 P3K-TSSL
Red light clocked
Alignment aid
4-turn potentiometer
High operating frequency
Polarisation filter

Durable metal housing

M8 metal connector

Bright ring-LED

Dark-/light switching

Functional reserve and contamination indicator


Technical Details (typ.): +20°C, 24V DC
Emitted light : red light 660 nm, clocked
Operating distance :40 ... 2.000 mm
Sensitivity adjustment :potentiometer
Reference reflector :100 x 100 mm
Service voltage :10 ... 35 V DC
Output :pnp, 200 mA, NO/NC switchable
Internal power consumption : < 40 mA
Voltage drop :< 2,0 V
Operating frequency :1.000 Hz
Response-/fall-time : < 0,5 ms / < 0,5 ms
Ambient temperature :-10 ... +60 °C
Ambient light immunity :20.000 Lux
Insulation voltage endurance :500 V
Protection class :IP 67
Casing material :die-cast zinc, lacquered finish
Window material : polymethyl methacrylate
Connection connector :M8, 3 pin

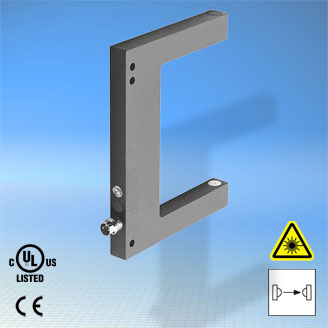

Laser fork light barrier LGU 081 N3K-TSSL
Extremely high resolution
Reproducibility 0,01 mm
Mountable side by side
Visible laser spot
High operating frequency

Light / dark switching

Metal casing

Laser class 2

High class

Extremely bright ring LED
Technical Details (typ.): +20°C, 24V DC
Evaluation :digital
Fork opening :80 mm
Resolution :Ø 0,05 mm
Emitted light : red light laser, clocked
Sensitivity adjustment :potentiometer
Operating frequency :3.000 Hz
Service voltage : 10 ... 30 V DC
Output : npn, 200 mA, NO/NC switchable
Internal power consumption :< 30 mA
Voltage drop :< 2,8 V
Switching hysteresis :< 0,02 mm
Reproducibility :0,01 mm
Laser power :< 100 µW
Laser protection class : 2 (EN 60825-1)
Ambient temperature : +5 ... +45 °C
Ambient light immunity :100.000 Lux
Insulation voltage endurance :250 V
Protection class :IP 67
Casing material :aluminium, black anodized
Connection connector :M8, 3 pin
