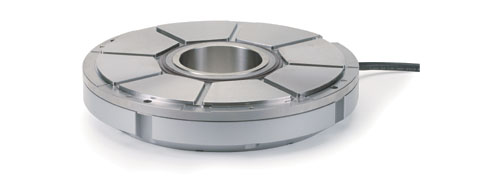

Germany Heidenhain angle encoder RON786
Large-diameter hollow shaft D = 60mm
Measuring step 0.0001 °
System accuracy ± 2 "
Lines 18000/36000
Machinery allowed to speed ≤ 1000 rpm
Incremental signal 1 Vpp
Large-diameter hollow shaft D = 60mm
Measuring step 0.0001 °
System accuracy ± 2 "
Lines 18000/36000
Machinery allowed to speed ≤ 1000 rpm
Incremental signal 1 Vpp

Germany Heidenhain angle encoder series ERN100
Large-diameter hollow shaft: 20 mm, 25mm, 38mm, 50mm
Shell foreign economy: 87 mm
Encoder stator coupling the natural frequency: ≥ 1000 Hz
Machinery allowed to speed: 6000 rpm (D ≤ 30 mm), 4000rpm (D> 30mm)
Line: 1000-5000
Large-diameter hollow shaft: 20 mm, 25mm, 38mm, 50mm
Shell foreign economy: 87 mm
Encoder stator coupling the natural frequency: ≥ 1000 Hz
Machinery allowed to speed: 6000 rpm (D ≤ 30 mm), 4000rpm (D> 30mm)
Line: 1000-5000

Germany FSG angle sensor
Rotation :0-90 ° ,0-360 °Rotation :0-90 ° ,0-360 °

PRAS1 Magnetic Angle Sensor---ASM
Absolute magnetic angle sensor
up to 360 degrees in a M12 housing
• Non-Contact, external magnet
• Protection class IP67
• 0.5...4.5 V, 0.5...10 V, 4...20 mA
Absolute magnetic angle sensor
up to 360 degrees in a M12 housing
• Non-Contact, external magnet
• Protection class IP67
• 0.5...4.5 V, 0.5...10 V, 4...20 mA

PRAS2 Magnetic Angle Sensor---ASM
Absolute magnetic angle sensor up to
360 degrees in a 36 mm flat housing
• Non-Contact, external magnet
• Protection class IP67
• 0.5...4.5 V, 0.5...10 V, 4...20 mA

PRAS3 Magnetic Angle Sensor--ASM
Absolute magnetic angle sensor up to
360 degrees, 36 mm dia. and 10 mm shaft
• Wear free, magnetic principle
• Protection class IP67
• 0.5...4.5 V, 0.5...10 V, 4...20 mA

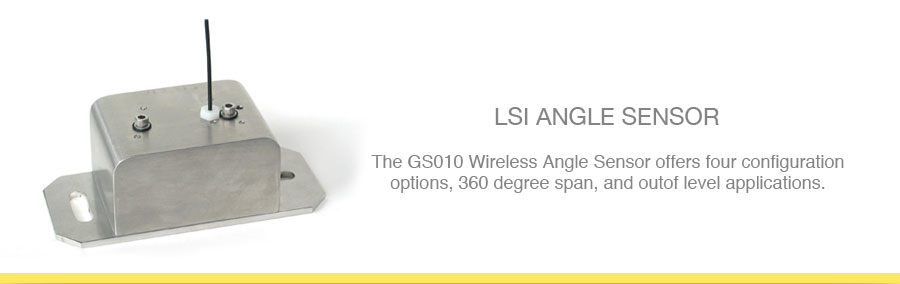

Inclinometer GS010 Angle Sensor--LSI
GS010 Angle Sensor Features:

•No moving parts, uses electronic chip
•Direct Sequence-Spread Spectrum-Two Way Communication
•Transmission Range: 4,000 feet; 1,300 meters
•Ships as standard with 1-"D" Cell lithium battery, 2-4 years battery life
•Users can replace lithium battery with "D" Cell alkaline battery if lithium replacement battery is unavailable when battery goes low. Battery life is 6 months to 1 year using alkaline

non-contact angle sensor--Bourns
supply voltage:20V
reverse voltage protection:10V
positive output voltage:10V
14V during 200s
