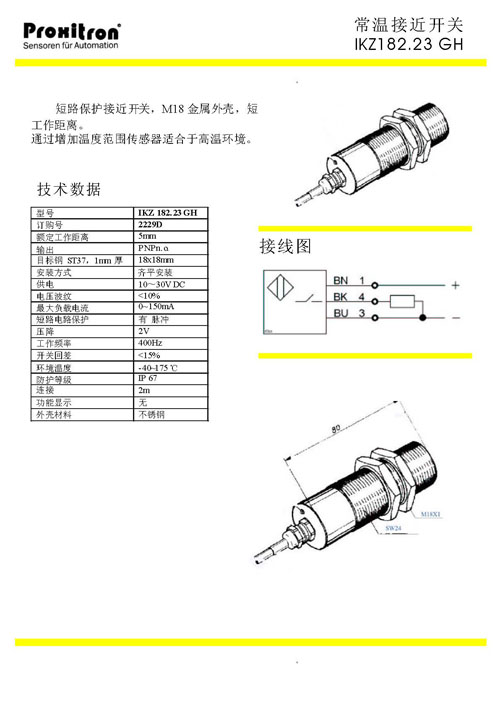

Proxitron IKZ 182.23 GH

http://www.intl-sensor.com Time:2008/6/10 15:38:53 Count : 69 Times

Type IKZ 182.23 GH
Art.-No. 2229D
Rated operating distance (Sn) 5 mm
Output PNP n. o.
Target steel St37, 1 mm thick 18 x 18 mm
Location at metal flush mount
Supply voltage (UB) 10 - 30 V DC
Ripple voltage < 10 %
Load current max. 0 - 150 mA
Short circuit protection yes, pulsing
Voltage drop (Ud) 2 V
Operating frequency (f) 400 Hz
Switching hysteresis (H) max. 15 %
Ambient temperature -40 ... +175 °C
Protection class IP 67
Connection 2m silicone cable
Function display no
Housing material stainless steel
