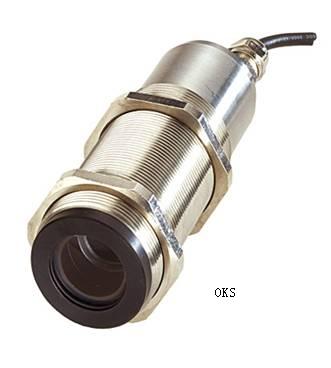

Proxitron 6901A

Type OKS 1 GA13.14
Art.-No. 6901A
Response temperature 300 - 1300 °C
Spectral Range 1,45 ... 1,8 μm
Output 4 – 20 mA
Measuring failure 0,5 %
Response time t90% min / max. 20 msec. / 10 sec.
Detected surface at 0,6 m Ø 6 mm
Emissivity 5…100 %
Integrated laser pilotlight* yes (5 – 30 V DC)
Integrated MAX data storage yes
Service Interface yes
Load impedance < 700 Ohm (24 V)
Supply voltage stabilized 24 V DC +/- 25 %
Ripple voltage < 50 mV
Power consumption < 1,5 VA
Power consumption pilotlight < 35 mA
Ambient temperature 0 to +70 °C
Protection class IP 65
Connection 2 m cable
Supply voltage display LED
Housing material stainless steel
Accessories
(not included in the scope of supply)
Art.-No.
PC-adapter cable + software DAK 301 6913A
Cooling jacket DAK 302 6913B
Mounting clamp DAK 305 6913E
*switchable if needed
The emissivity, the response time as well as the
measuring subrange may be adjusted with optional PC
service software and PC-adapter cable.
