INTL-SENSOR > Products >
| Image | Main | Desc | Download |
|---|---|---|---|

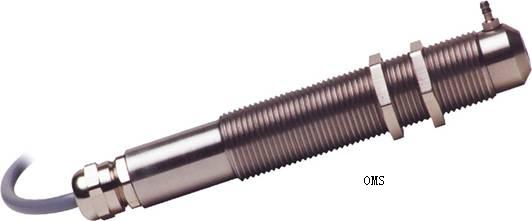

 Proxitron 6905A | Type OMS 500.1U L Art.-No. 6905A Response temperature 100 - 500 °C Spectral Range 8 - 14 μm Output 10 mV/°C Measuring failure 1,5 % min. +/-2,5 K Response time t90% 0,3 sec. Distance ratio 5:1 Detected surface at 0,3 m Ø 60 mm Emissivity fixed 95 % Load impedance 50 KOhm Supply voltage stabilized 24 V DC +/- 25 % Power consumption < 7 mA Ambient temperature 0 to +70 °C Protection class IP 65 Connection 1 m cable (up to 100 °C) Supply voltage display no Housing material stainless steel Accessories (not included in the scope of supply) Art.-No. 90° deflection mirror DAM 202 6914B Cooling jacket DAM 201 up to 270 °C 6914A Adjustable mounting bracket DAM 203 6914C | Type OMS 500.1U L Art.-No. 6905A Response temperature 100 - 500 °C Spectral Range 8 - 14 μm Output 10 mV/°C Measuring failure 1,5 % min. +/-2,5 K Response time t90% 0,3 sec. Distance ratio 5:1 Detected surface at 0,3 m Ø 60 mm Emissivity fixed 95 % Load impedance 50 KOhm Supply voltage stabilized 24 V DC +/- 25 % Power consumption < 7 mA Ambient temperature 0 to +70 °C Protection class IP 65 Connection 1 m cable (up to 100 °C) Supply voltage display no Housing material stainless steel Accessories (not included in the scope of supply) Art.-No. 90° deflection mirror DAM 202 6914B Cooling jacket DAM 201 up to 270 °C 6914A Adjustable mounting bracket DAM 203 6914C |  |
 Proxitron 6908A | Type OHT 400 Art.-No. 6908A Measuring range -32 - 400 °C Spectral range 8 – 14 μm Temperature display °C Display resolution 0,1 K Accuracy 2 % of reading Repeatability 1 % of reading Response time t90% 300 ms Distance relation 10 : 1 Measuring surface at 1 m distance Ø 100 mm Emissivity fix 95 % RS 232 interface no Supply voltage 9 V NiMH Akku Ambient temperature 0 ... +55 °C Display LCD Housing material plastic Laser pilot light yes Distance | Type OHT 400 Art.-No. 6908A Measuring range -32 - 400 °C Spectral range 8 – 14 μm Temperature display °C Display resolution 0,1 K Accuracy 2 % of reading Repeatability 1 % of reading Response time t90% 300 ms Distance relation 10 : 1 Measuring surface at 1 m distance Ø 100 mm Emissivity fix 95 % RS 232 interface no Supply voltage 9 V NiMH Akku Ambient temperature 0 ... +55 °C Display LCD Housing material plastic Laser pilot light yes Distance | |

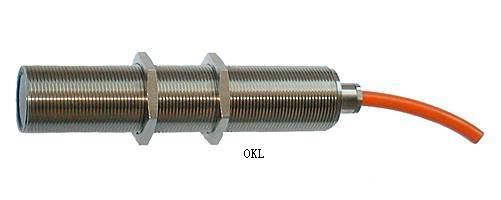

 Proxitron 7802A | Type OKL 203.05 G Art.-No. 7802A Response temperature 350 °C / 623 K View angle 2° Distance ratio 29:1 Detected surface at 2m ∅ 70 mm Output normally open Supply voltage 20 - 260 V AC/DC Power frequency 40 - 440 Hz Ripple voltage max. 15 % (DC) Load current max. 5 - 400 mA Short-time load current 2 A / 10 ms 0,8 A / 100 ms Short circuit protection yes, pulsing Residual current 1,7 mA / 260 V AC 1,0 mA / 24 V DC Voltage drop 9 V Operating frequency 1500 Hz (DC) Ambient temperature -25 ... +60 °C Protection class IP 67 Connection 2 m PUR-cable Function display LED Housing Brass, nickel plated Accessories (not included in the scope of supply) Art.-No. Tube with air connection OL 25 L 9828G | Type OKL 203.05 G Art.-No. 7802A Response temperature 350 °C / 623 K View angle 2° Distance ratio 29:1 Detected surface at 2m ∅ 70 mm Output normally open Supply voltage 20 - 260 V AC/DC Power frequency 40 - 440 Hz Ripple voltage max. 15 % (DC) Load current max. 5 - 400 mA Short-time load current 2 A / 10 ms 0,8 A / 100 ms Short circuit protection yes, pulsing Residual current 1,7 mA / 260 V AC 1,0 mA / 24 V DC Voltage drop 9 V Operating frequency 1500 Hz (DC) Ambient temperature -25 ... +60 °C Protection class IP 67 Connection 2 m PUR-cable Function display LED Housing Brass, nickel plated Accessories (not included in the scope of supply) Art.-No. Tube with air connection OL 25 L 9828G | |

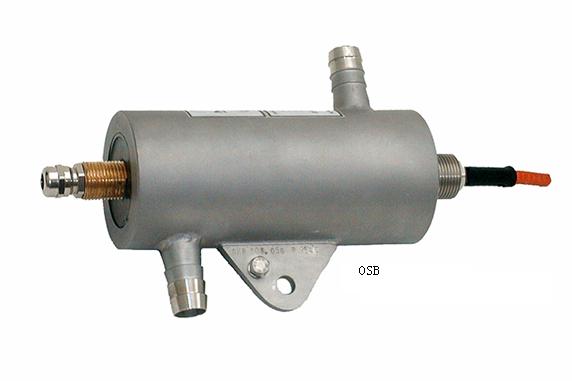

 Proxitron 6131B | Type OSB 6747.13 G Art.-No. 6134A Type LLK 2 Art.-No. 6436F Type OAC 204 Art.-No. 6036A Response temperature adjustable 400 – 700 °C View angel 2° Distance ratio 29:1 Detected surface at 2m Ø 70 mm Output PNP - n. o. Supply voltage 10 - 55 V DC Ripple voltage max. 15 % Load current max. 0 - 400 mA Short-time load current 2 A / 10 ms 0,8 A / 100 ms Short circuit protection yes, pulsing No load current 3 mA Voltage drop 2 V Operating frequency 1500 Hz Switching hysteresis 3 - 10 % Ambient temperature OSB (without cooling) LLK+OAC -20 ... +75 °C -20 ... +290 °C Protection class IP 67 Connection 2 m POKT-Therm cable with G 3/4" flexible tube connection Function display LED Housing material stainless steel | Type OSB 6747.13 G Art.-No. 6134A Type LLK 2 Art.-No. 6436F Type OAC 204 Art.-No. 6036A Response temperature adjustable 400 – 700 °C View angel 2° Distance ratio 29:1 Detected surface at 2m Ø 70 mm Output PNP - n. o. Supply voltage 10 - 55 V DC Ripple voltage max. 15 % Load current max. 0 - 400 mA Short-time load current 2 A / 10 ms 0,8 A / 100 ms Short circuit protection yes, pulsing No load current 3 mA Voltage drop 2 V Operating frequency 1500 Hz Switching hysteresis 3 - 10 % Ambient temperature OSB (without cooling) LLK+OAC -20 ... +75 °C -20 ... +290 °C Protection class IP 67 Connection 2 m POKT-Therm cable with G 3/4" flexible tube connection Function display LED Housing material stainless steel | |
 Proxitron IKZ 122.22 GH | Type IKZ 122.22 GH Art.-No. 2265B Rated operating distance (Sn) 3 mm Operating distance adjustable no Output PNP n. c. Target steel St37, 1 mm thick 12 x 12 mm Location at metal flush Supply voltage (UB) 10 - 30 V DC Ripple voltage < 15 % Load current max. 120 mA / +100 °C 70 mA / +150 °C Short circuit protection yes Voltage drop (Ud) 2 V Operating frequency (f) 200 Hz Switching hysteresis (H) max. 15 % Ambient temperature -25 ... +150 °C Protection class IP 67 Connection 2 m silicone cable Function display no Housing material stainless steel | Type IKZ 122.22 GH Art.-No. 2265B Rated operating distance (Sn) 3 mm Operating distance adjustable no Output PNP n. c. Target steel St37, 1 mm thick 12 x 12 mm Location at metal flush Supply voltage (UB) 10 - 30 V DC Ripple voltage < 15 % Load current max. 120 mA / +100 °C 70 mA / +150 °C Short circuit protection yes Voltage drop (Ud) 2 V Operating frequency (f) 200 Hz Switching hysteresis (H) max. 15 % Ambient temperature -25 ... +150 °C Protection class IP 67 Connection 2 m silicone cable Function display no Housing material stainless steel | |
 Proxitron IKZ 182.23 GH | Type IKZ 182.23 GH Art.-No. 2229D Rated operating distance (Sn) 5 mm Output PNP n. o. Target steel St37, 1 mm thick 18 x 18 mm Location at metal flush mount Supply voltage (UB) 10 - 30 V DC Ripple voltage < 10 % Load current max. 0 - 150 mA Short circuit protection yes, pulsing Voltage drop (Ud) 2 V Operating frequency (f) 400 Hz Switching hysteresis (H) max. 15 % Ambient temperature -40 ... +175 °C Protection class IP 67 Connection 2m silicone cable Function display no Housing material stainless steel | Type IKZ 182.23 GH Art.-No. 2229D Rated operating distance (Sn) 5 mm Output PNP n. o. Target steel St37, 1 mm thick 18 x 18 mm Location at metal flush mount Supply voltage (UB) 10 - 30 V DC Ripple voltage < 10 % Load current max. 0 - 150 mA Short circuit protection yes, pulsing Voltage drop (Ud) 2 V Operating frequency (f) 400 Hz Switching hysteresis (H) max. 15 % Ambient temperature -40 ... +175 °C Protection class IP 67 Connection 2m silicone cable Function display no Housing material stainless steel | |
 ALMEMO 2190-2 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual:http://www.ahlborn.com/sites/eng/getfile.php?311.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 ALMEMO 5590-2 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual:http://www.ahlborn.com/sites/eng/getfile.php?322.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 ALMEMO 5590-1 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors and electr. signals (man. sect.4) All analogue and digital output modules (manual section 5.1) The interface modules RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual:http://www.ahlborn.com/sites/eng/getfile.php?321.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors and electr. signals (man. sect.4) All analogue and digital output modules (manual section 5.1) The interface modules RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 ALMEMO 8990-8 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual http://www.ahlborn.com/sites/eng/getfile.php?376.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 ALMEMO 6290-7 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual http://www.ahlborn.com/sites/eng/getfile.php?399.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 ALMEMO 4290-7 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual http://www.ahlborn.com/sites/eng/getfile.php?319.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 ALMEMO 3290-8 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual http://www.ahlborn.com/sites/eng/getfile.php?318.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 ALMEMO 2290-4 | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) manual http://www.ahlborn.com/sites/eng/getfile.php?373.pdf | Detailed description of the ALMEMO® system (manual section 1) Overview of the device functions and measuring ranges (manual section 2) All sensors with basic principles, operation, technical data (man. section 3) The options for connecting existing sensors (manual section 4) All analogue and digital output modules (manual section 5.1) The interface module RS232, fiber optics, Centronics (manual section 5.2) The entire ALMEMO® networking system (manual section 5.3) All functions and their control via the interface (manual section 6) A complete interface command list with all print outputs (manual section 7) | |
 Honsberg piston valve design | principle control electr. data reed switch n.o. or n.c. 230 V AC 1A 50 VA basic data PN 200 , tmax=110°C connection G1/4 - G1 1/2 female thread bronze range 0.4-90 l/min H2O | principle control electr. data reed switch n.o. or n.c. 230 V AC 1A 50 VA basic data PN 200 , tmax=110°C connection G1/4 - G1 1/2 female thread bronze range 0.4-90 l/min H2O | |
| count60 every page 15 1/4page | first page prev page next page last page |
